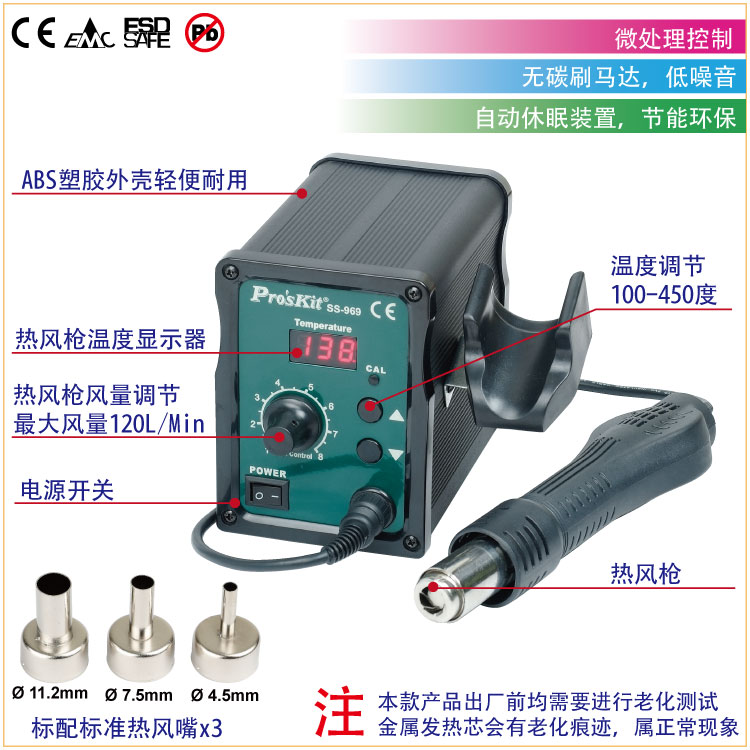

SMD Rework Station Preheater Advanced Hot Air Soldering Station(220V/700W) BGA Welding Digital LED Temperature Display

Features
  • Microprocessor-controlled, closed circuit sensor design, high power and
    quick warm-up times.
  • Adjustable air flow, air volume and temperature, suitable for a variety of
    applications.
  • Handle with sensor design provides real-time operating convenience.
  • Auto cool-off process to prolong the life of heating element.
  • Plastic shell, compact body, beautiful, small footprint.
  • Brushless motor design, quiet in operation, equipment noise
    less than 45dB
  • Safe solder temperature sensitive components and won’t deform other plastic components.
  • Also for heating shrink, viscidity removal, lacquer removal,
    preheating.
  SS-969H (1)

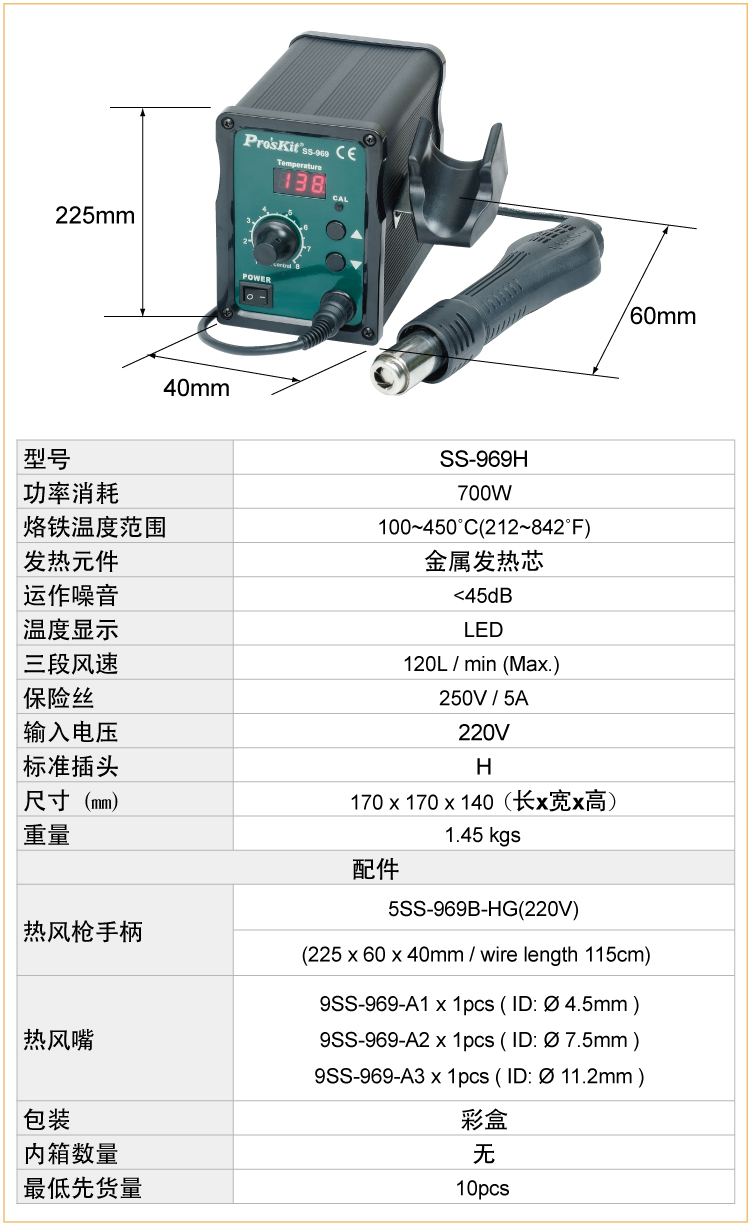

Specification
Power Consumption
700W
Temperature Range
100~450?C (212~842?F)
Heating Element
Metal Heating Core
Equipment Noise
<45dB
Temperature Display
LED
Air Volume
120L / min (Max.)
Fuse type
250V / 5A
Input Voltage
220V
Plug Type
H
Machine Size (mm)
170 x 170 x 140
Overall Package (mm)
280 x 185 x 170
Weight
1.45 kgs
Accessories
Heat Air Gun
5SS-969B-HG(220V)
(225 x 60 x 40mm / wire length 115cm)

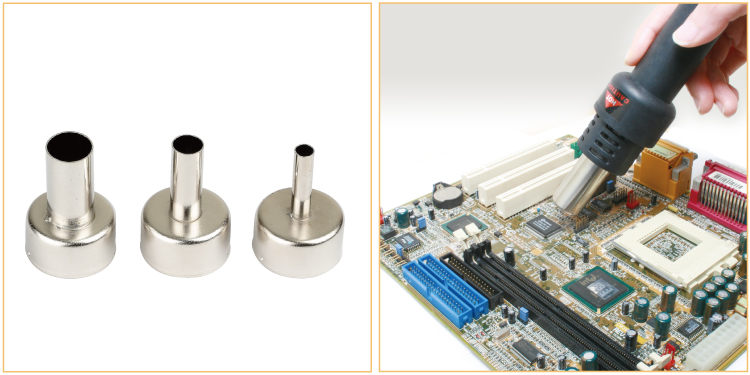

Nozzle
9SS-969-A1 x 1pcs ( ID: Ø 4.5mm )
9SS-969-A2 x 1pcs ( ID: Ø 7.5mm )
9SS-969-A3 x 1pcs ( ID: Ø 11.2mm )
Individual packing

Color box
