CNC Single Axis Two Phase TB6600 Hybrid Stepper Motor Driver 0.2A ~ 5A DC 12 ~ 48V

 http://chinaplccenter.com/CNC-Single-Axis-Two-Phase-TB6600-Hybrid-Stepper-Motor-Driver?search=CNC%20Single%20Axis%20Two%20Phase%20TB6600%20Hybrid%20Stepper%20Motor%20Driver%200.2A%20~%205A%20DC%2012%20~%2048V

HY-DIV268N-5A subdivision-type two-phase hybrid stepping motor drive use DC 12 ~ 48V power supply. It is suitable for driving two-phase hybrid stepping motor, whose dynamic voltage is 12 to 48V, the current is less than 5A and the outer diameter 35~86 mm. This drive use the drive’s current loop subdivision control, the motor torque ripple is very small, low-speed running is very smooth, almost no vibration and noise. High-speed torque is much higher than other two-phase drive, high positioning accuracy. It is used widely for the engraving machine, CNC machine tools, packaging machinery and other high resolution requirements on the device.

Features:
1) Average current control, two-phase sinusoidal current drive output;
2) DC 12 ~ 48V power supply, the internal integration of 12V and 5V regulator;
3) Optically isolated signal input / output;
4) Overvoltage, undervoltage, overcurrent, and white short-circuit protection;
5) 4 file segmentation and automatic half-streaming capabilities up to 16 segments;
6) File output phase current settings;
7) High starting speed;
8) High-speed torque;
Electrical Parameters:
– Input voltage DC 12 ~ 48V input;
– The input current of 1 to 5 amps, select the drive a stepper motor;
– Output current of 0.2A ~ 5A;
– Temperature Operating Temperature -10 to 45 Celsius; Storage temperature -40  to 70 Celsius;
– Humidity not condensing, not drops;
– Gas prohibit combustible gas and conductive dust
– Weight: 200 grams
Control signal interface
sm576-figure 1
Figure 1 wiring schematic
1, the definition of control signals
PUL +:  step pulse signal is input side or the positive pulse signal input positive terminal
PUL-:  the negative input of the negative input pulse signal or a positive pulse signal
DIR +:  stepping direction signal input to the positive terminal or negative pulse signal input to the positive terminal
DIR -:  stepping direction signal input of the negative side or reverse step pulse signal input negative terminal
EN +:  offline can reset signal input side is
EN-:  offline can reset signal input negative terminal
Offline enable signal is active, reset drive failure to prohibit any pulse, the output of the drive
Power component is turned off, the motor holding torque.
Control signal connections
PC control signal can be high, also can be low effective. When active high, the control signal
The negative side together as a signal to active low, positive side of all control signals together as a signal common.
For example, open-collector and PNP output interface circuit diagram is as follows:
sm576-figure 2
Figure 2. Input interface circuit (common cathode connection)
Note:
 the VCC is 5V, R short;
 VCC value of 12V, R 1K, more than 1/8W resistor;
 VCC value of 24V, R 2K, more than 1/8W resistor;
 R Must be connected to the controller output terminals.
1 x CNC Single Axis Two Phase TB6600 Hybrid Stepper Motor Drive
English Manual ( pls contact us and let us know your email address, we’ll send it to you by email.)

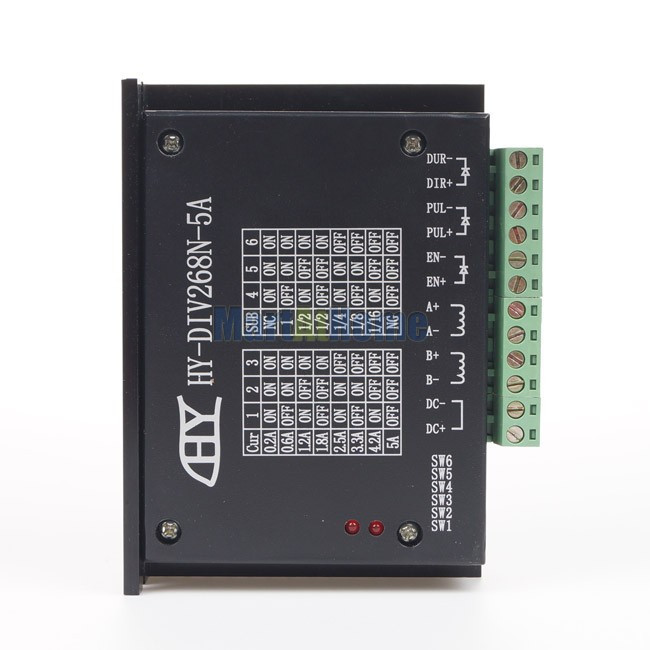

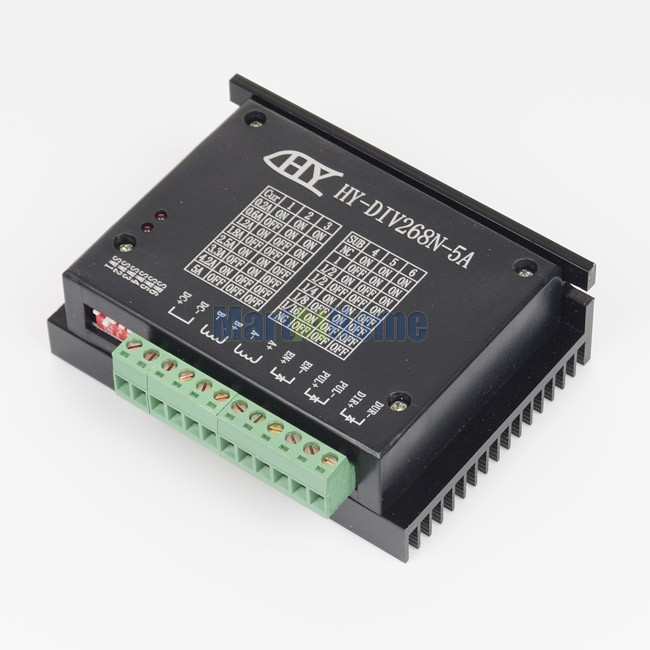

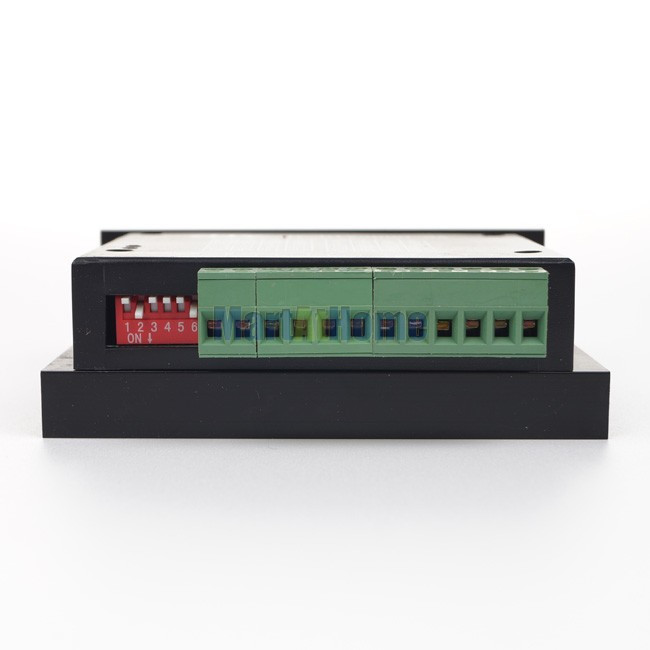

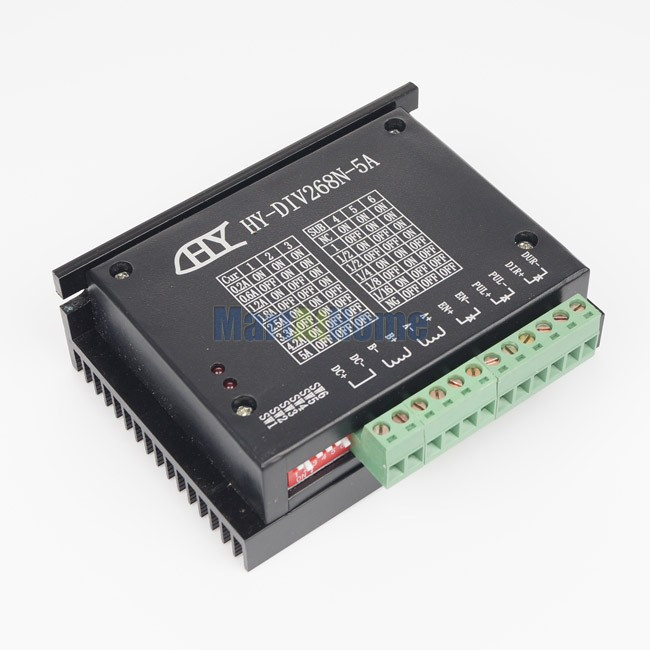

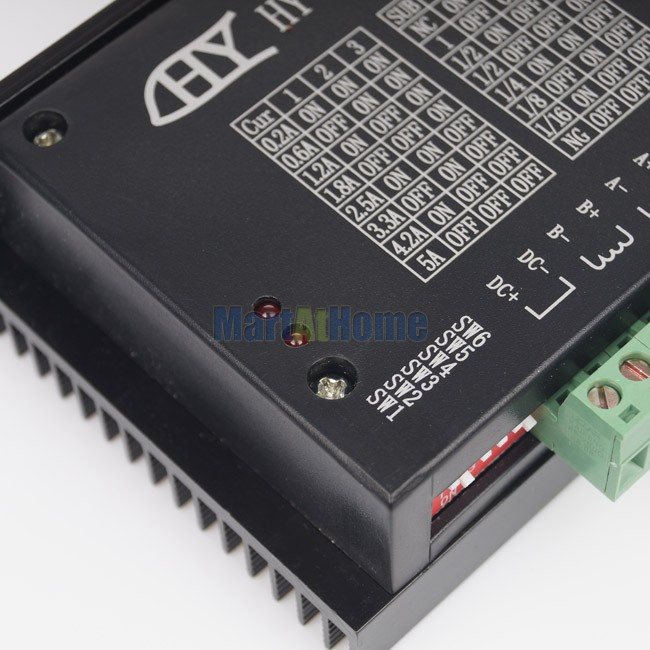

sm576-1sm576-2sm576-3sm576-4sm576-5
