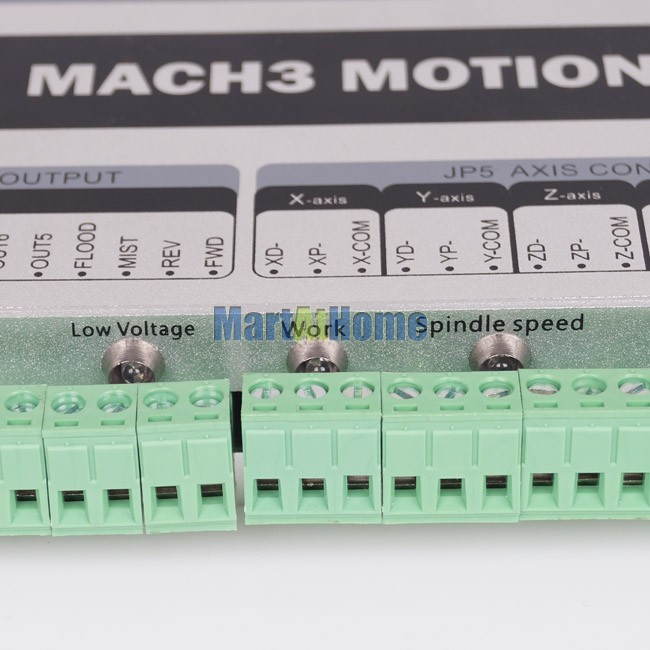

Upgrade 3 Axis USB CNC Motion Control Card Mach3
Breakout Board 200KHz Support Windows 7

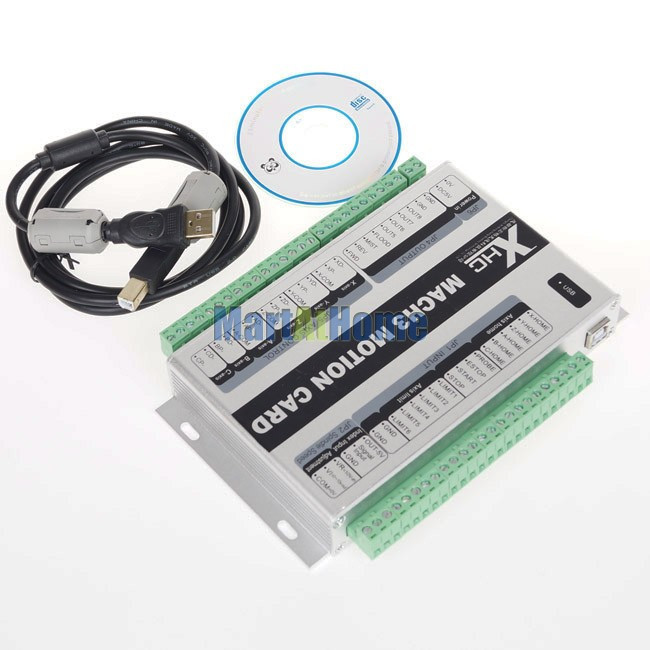

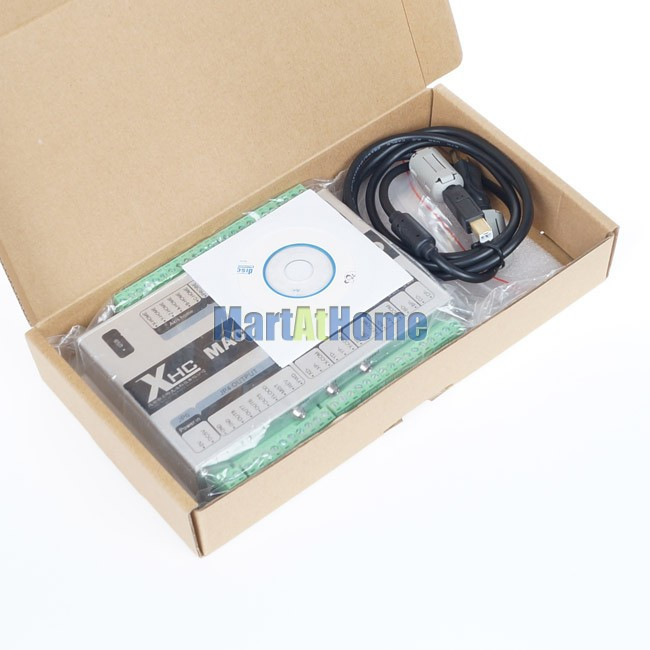

I.    Package Contents:
  •      1 x CNC Mach3 USB 3 Axis Motion Control Card

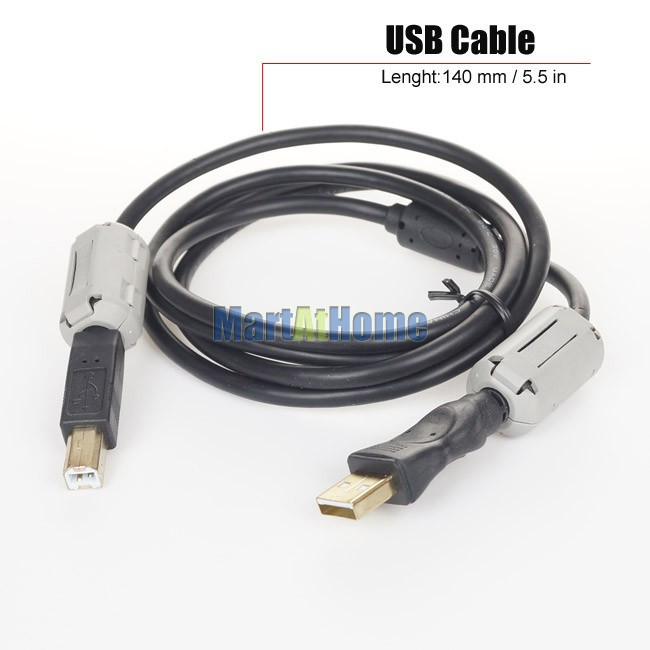

  •      1 x USB Cable
  •      1 x CD
II.    Features:

1.    Support all versions of Mach3
2.    Only for Windows operating system (not including Mac OS)

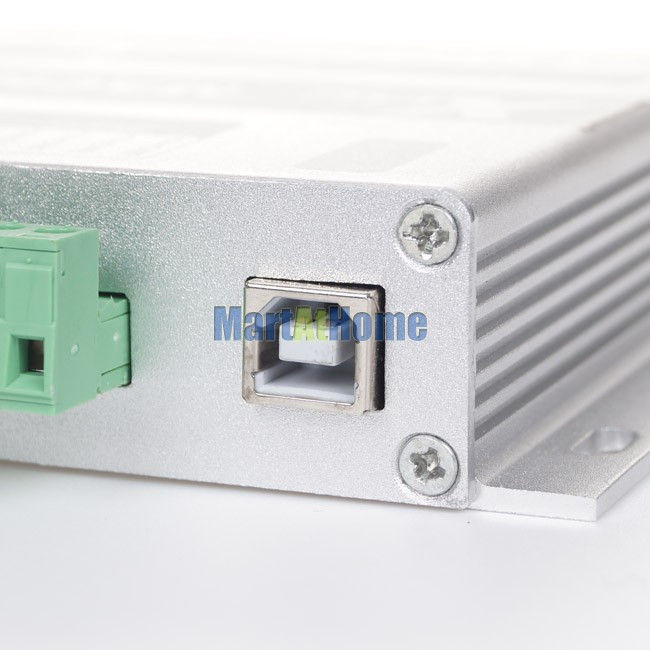

3.    USB jack does not need to install the driver, plug and play under all versions of Windows.
4.    Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach3 working state, USB cable unplugs and then plugs in, but also the normal connection.
5.    Supports 3-axis linkage.
6.    Maximum step-pulse frequency is 200 KHz, can connect servo driver and stepper driver.
7.    The indicator light indicates various working status, such as USB connection, Mach3 connection and so on.
8.    16 input IO.
9.    Speed testing function, the spindle actual speed displays on the Mach3 interface in real time.
10.  Onboard isolated power supply, not need external power supply.
11.   All IO port fully isolated, strong anti-interference, stable performance
12.   Support XHC series of wireless electronic MPG, such as WHB04 MPG.
13.   Support spindle speed PWM output;
 support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage.

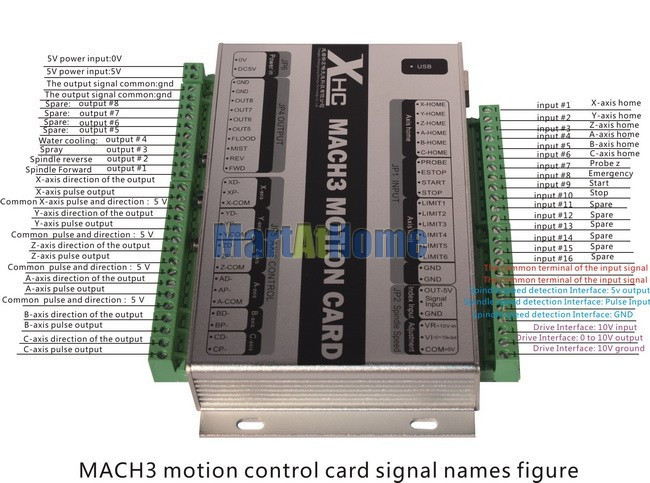

III.    Interface Schematics(the following is from 6-Axis for Reference):

sm639-figure1

IV. Simple connection description

1.    Application Connection Diagram
sm639-figure2

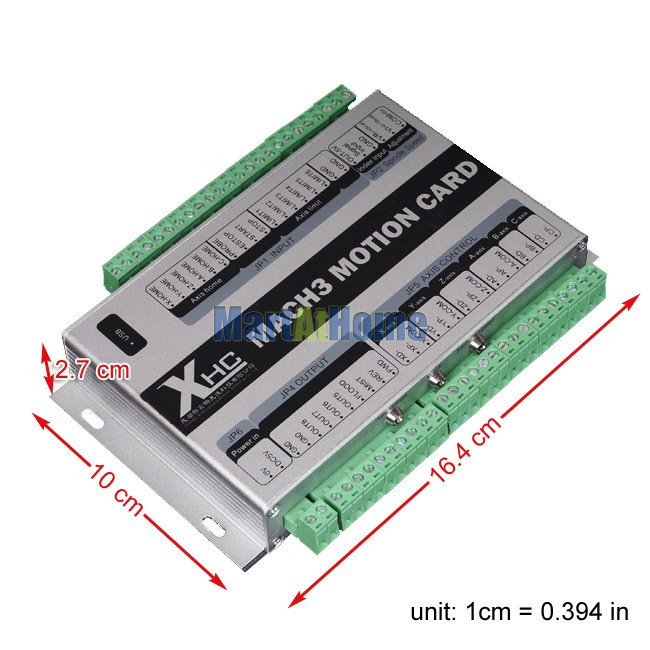

2.    Motion control card Dimensions
sm639-figure3

3. Electrical Characteristics

V. Wiring Instruction

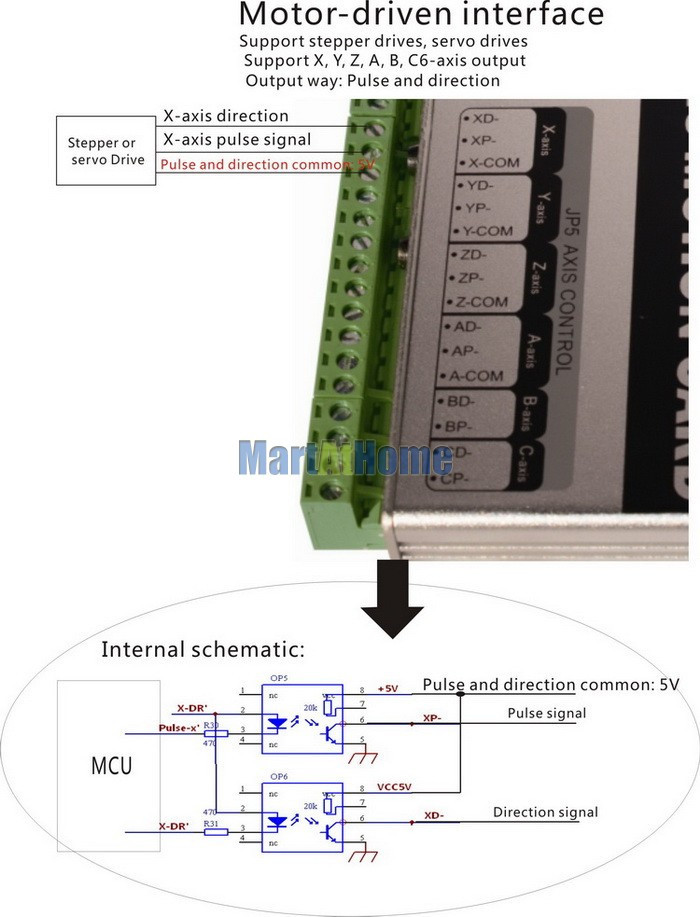

1. Motor-driven Interface
sm639-figure4

2. Spindle Speed Interface set
sm639-figure5

3.    Spindle Speed Signal
sm639-figure6

4.    Input Diagram
sm639-figure7

5.    Output Diagram
sm639-figure8

6.    Work LED
sm639-figure9
