50KHZ Industr CNC 4 Axis Breakout Board Carving Machine Control System Card Engraving Machine Control Card

IMG_0006
Using high-performance 32-bit Cpu,Equipped with liquid crystal displays ,Window humane man-machine interface,Using external TF card memory ,Storage space than 2G,Operating voltage and control voltage before using isolation modeTouch keyboard .The system has high reliability,High precision ,Noise,Easy to operate and so on.
 The manual download https://drive.google.com/file/d/0B874Xcfb4xksN2ljaWx3THZySWc/edit?usp=sharing
The controller can Four axis linkage

Main features:
Parameter settings: For processing, control parameters related to the operation
Manual operation: can be achieved manually, jog back to the program zero, back to mechanical zero, cleared coordinate operations.
Program management: program can create, delete, modify, read, save, save, automatic processing, continuous, and pause.
External Manual: Manually define a variety of external functions to facilitate the use of
Freedom to select the input function: the limited input port can achieve a variety of user needs
System components
CNC system consists of the following components:
High-performance, high-speed 32-bit ARM CPU
Liquid crystal display (resolution: 320 × 240)
Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down tank flow 500MA)
Users machining program memory can be implemented in any storage TF card
Technical indicators
The smallest unit of data 0.0001mm
The maximum data size ± 99999.999mm
Maximum pulse output frequency 50KHz (-axis simultaneous 50KHZ)
Control axes 4 axes (X, Y, Z, A)
4-axis linkage axis and has a micro-multi-multi-axis interpolation control line forward

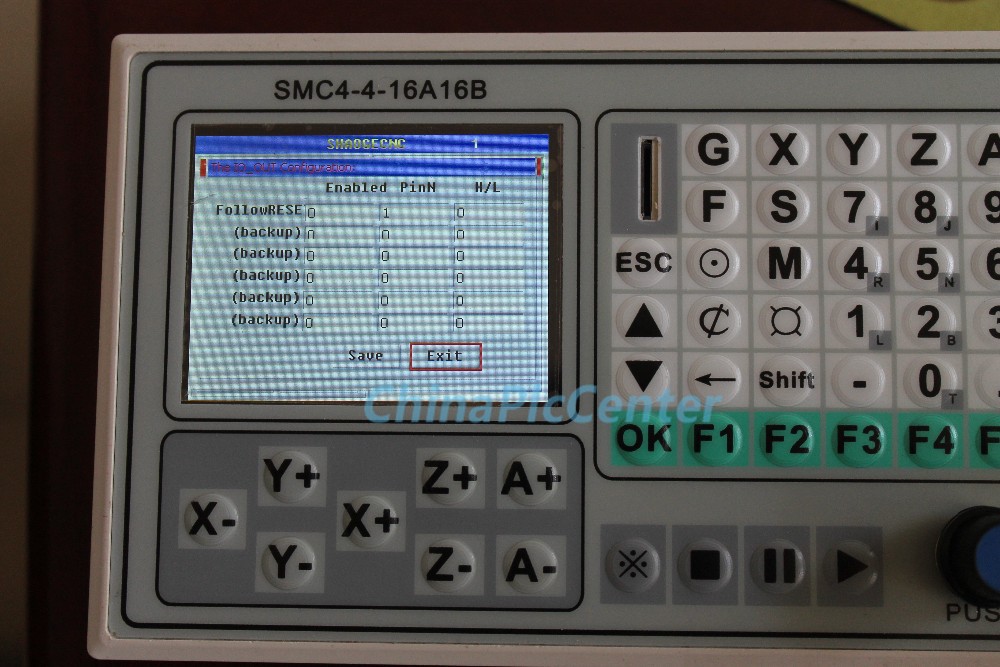

Appearance and Panel: Dimensions: length 165, width 101, height 50
IMG_0037IMG_0038IMG_0039IMG_0040IMG_0041IMG_0043IMG_0044IMG_0042

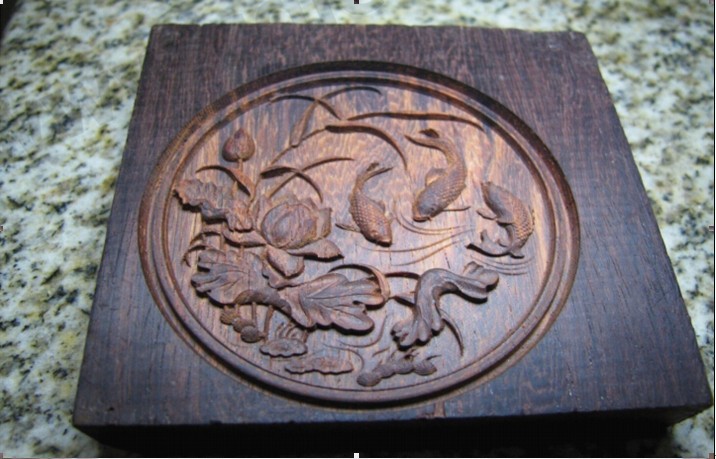

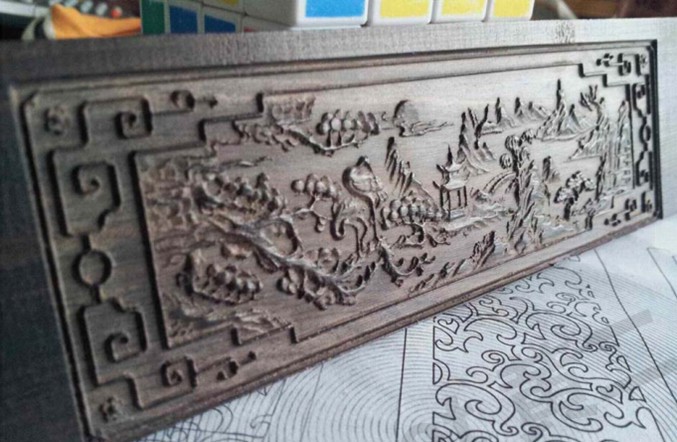

The controller reliefs carved out of the picture
